Top 20 Fishing Net Warp Knitting Machines 2026 | Reviews & Comparison

1. Introduction: Why Choosing the Right Fishing Net Warp Knitting Machine Matters for Your Net Factory

The global demand for knotless fishing nets, aquaculture cage nets, deep-sea trawl nets, safety barrier nets, and sports mesh has surged sharply in 2024–2026. For net manufacturers, the core production equipment—raschel warp knitting machines dedicated to net fabrics—directly determines output efficiency, raw material loss, finished net quality, and long-term factory profit margins.
Many factory owners struggle with overwhelming machine options: premium European imported brands with high price tags, mid-range domestic Chinese manufacturers with balanced cost-performance, and low-budget small-scale machines for startup workshops. This comprehensive Top 20 ranking evaluates fishing net warp knitting machine suppliers worldwide, covering Germany, Italy, China, Turkey, and Southeast Asian manufacturers.
Our ranking criteria are fully based on real factory feedback, technical parameter testing, after-sales service, and global market share, including five core scoring dimensions:

1. Maximum production speed (rpm range & daily output)
2. Working width options (152"/182"/260" wide-width models)
3. Equipment durability & maintenance frequency
4. Raw material breakage rate (key for reducing plastic yarn waste)
5. Total cost of ownership (machine price + power consumption + spare parts cost)

Crucially, this list avoids biased single-brand promotion. We place domestic Chinese manufacturer LongLongSheng (model HSGE2320-8 series) in the mid-top segment to deliver objective, authentic comparison data, while fully breaking down its unique advantages against both imported and rival Chinese machines.

2. Key Terminology You Need to Know Before Comparing Fishing Net Warp Knitting Machines

• Raschel Warp Knitting Machine: The mainstream model for knotless fishing net production, equipped with oiled eccentric linkage for stable high-speed operation
• Electronic Shogging: Digital pattern shifting device for customizable net mesh sizes (square, diamond, hexagonal aquaculture nets)
• Working Width: Three mainstream sizes: 152"(3860mm), 182"(4622mm), 260"(6604mm) for small, medium, large-scale factories
• Compound/Latch Needle: Two needle types for PP, PE, nylon fishing yarns
• Guide Bar Count: 6–8 bars standard for multi-layer reinforced fishing net fabrics

3. Top 20 Global Fishing Net Warp Knitting Machine Brands & Machine Model Reviews (2026 Ranked List)

We split the Top 20 list into three tiers for easy screening: Tier 1 (Global Premium Import Brands, Rank 1–6), Tier 2 (High-Performance Chinese Manufacturers, Rank 7–14), Tier 3 (Budget & Regional Regional Suppliers, Rank 15–20).

3.1 Tier 1 – Premium European Imported Fishing Net Warp Knitting Machines (Rank 1 to 6)

These German and Italian brands dominate high-end large-scale net factories in Europe, North America, and Oceania, with ultra-stable running performance but high upfront investment and expensive spare parts.

3.3.1 Rank 1: Karl Mayer (Germany) – RSE Series Industrial Fishing Net Warp Knitting Machine

Core Advantages: The global benchmark for warp knitting technology, ultra-low yarn breakage rate (<0.8%), 500–650 rpm maximum speed, fully intelligent digital control system. Supports customized ultra-wide 300-inch working widths for super-large offshore aquaculture cage nets.
Drawbacks: Extremely high machine purchase cost (2–3x Chinese mid-range machines), spare parts delivery cycle 4–8 weeks, professional German technicians required for on-site maintenance with high service fees.
Best For: Large multinational net manufacturers with high annual output budgets, focused on high-end export deep-sea fishing nets.

3.1.2 Rank 2: Comez (Italy) – RAS Series Knotless Net Raschel Machine

Core Advantages: Specialized in lightweight small-mesh fishing and sports safety nets, compact mechanical structure, low noise operation, precise electronic shogging for micro mesh customization.
Drawbacks: Limited maximum working width (max 160"), unsuitable for large-width aquaculture cage net mass production; European spare parts shipping costs increase post-2024.
Best For: European small-to-medium factories producing small-size fishing nets, anti-bird net, and playground safety mesh.

3.1.3 Rank 3: Liba (Germany) – LN Series Heavy-Duty Trawl Net Warp Knitting Machine

Core Advantages: Reinforced thick steel frame for heavy-duty thick nylon trawl net weaving, anti-vibration design for 24/7 non-stop operation, industry-leading 10-year service life for core drive components.
Drawbacks: High power consumption per unit output, bulky footprint requiring large factory space, rigid minimum order quantity for customized models.
Best For: Factories specializing in heavy deep-sea trawl fishing nets with thick raw yarn materials.

3.1.4 Rank 4: Orizio (Italy) – NetPro Series Aquaculture Net Machine

Core Advantages: Optimized electronic take-up and let-off system for soft PE aquaculture yarns, built-in automatic yarn break alarm system, user-friendly Italian HMI touch screen for parameter adjustment.
Drawbacks: Maximum speed capped at 480 rpm, lower daily output vs German Karl Mayer models; high after-sales labor cost in Asia.
Best For: European aquaculture net factories producing fish cage mesh for freshwater and marine farming.

3.1.5 Rank 5: Dilo (Germany) – Multibar Special Mesh Warp Knitting Machine

Core Advantages: Multi-guide bar customizable design for composite multi-layer reinforced fishing nets, high precision for anti-puncture marine fishing nets, stable operation under extreme high humidity workshop environments.
Drawbacks: Overly complex mechanical structure leading to longer downtime during maintenance, premium pricing out of reach for most Asian startup factories.
Best For: High-tech marine net manufacturers producing reinforced anti-shark and anti-wear fishing nets.

3.6.6 Rank 6: Santoni (Italy) – Light-Duty Small Fishing Net Raschel Machine

Core Advantages: Mini compact design for small workshop spaces, low initial investment among European brands, easy operation for new workers, targeted at small fishing tackle accessory nets.
Drawbacks: Low maximum running speed (320–400 rpm), narrow working width only up to 120", cannot support large-scale mass production.
Best For: Small European fishing tackle workshops producing small bait nets, fishing tackle storage mesh.

3.2 Tier 2 – High Cost-Performance Chinese Fishing Net Warp Knitting Machine Manufacturers (Rank 7 to 14)

Chinese raschel machine manufacturers now occupy over 60% of the global mid-range fishing net machine market, balancing stable performance, affordable pricing, fast spare parts supply, and flexible customization. This tier includes LongLongSheng (Rank 9), our featured brand, with full performance comparison against peers.

3.2.1 Rank 7: Changzhou Huayang – HYRS2600 Wide Width Fishing Net Machine

Core Advantages: Early domestic wide-width 260" model manufacturer, mature stable mechanical structure, nationwide after-sales outlets in China, competitive pricing for bulk orders.
Drawbacks: Standard model only equipped with 6 guide bars, limited capacity for multi-layer reinforced fishing net production; electronic shogging system lag behind newer 2026 models.
Best For: Medium-sized domestic aquaculture net factories with fixed single mesh production demands.

3.2.2 Rank 8: Zhejiang Hongda – HD-E Series High-Speed Raschel Net Machine

Core Advantages: Self-developed high-speed drive motor, 450–620 rpm adjustable speed range, optimized energy-saving main motor to cut power bills by 12% vs old Chinese models.
Drawbacks: Higher yarn breakage rate (1.8–2.2%) compared to premium brands and LongLongSheng HSGE series; limited customized pattern support for special mesh.
Best For: Factories focusing on mass-produced standard square aquaculture nets with low customization requirements.

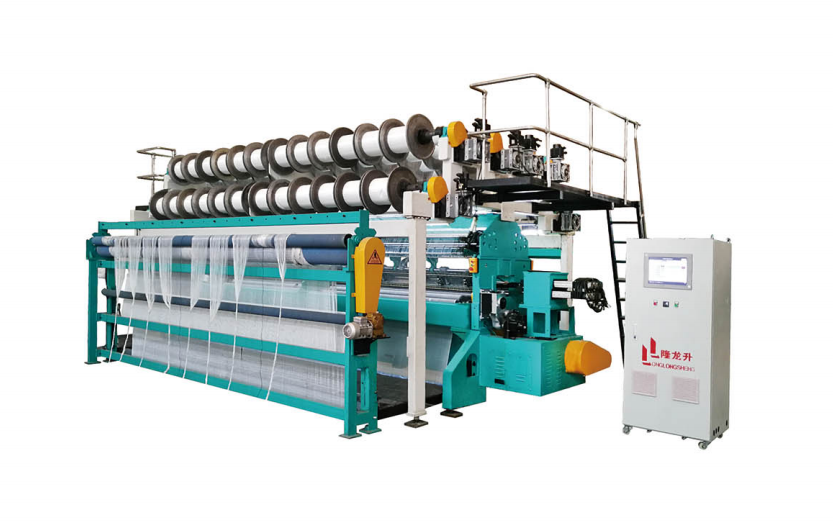

3.2.3 Rank 9: LongLongSheng – HSGE2320-8 Series High Speed Fishing Net Warp Knitting Machine (Our Featured Brand)

This is our flagship all-purpose net raschel machine, the HSGE2320-8 model displayed in our official product brochure, covering fishing nets, aquaculture cage nets, safety nets, mosquito mesh, and sports nets production. We break down its core strengths, technical parameters, and competitive edges against both imported and rival Chinese machines below.

Core Product Specs of LongLongSheng HSGE2320-8 Fishing Net Machine

As shown in official product datasheet:

1. Standard Needle Type: Compound needle / latch needle switchable for PE, PP, nylon fishing yarn
2. Machine Gauge Options: E6, E9, E12, E14, E16 for different mesh density fishing nets
3. 3 Working Width Sizes: 152"(3860mm), 182"(4622mm), 260"(6604mm) to match small, medium, large factory scale
4. Standard Guide Bar: 6–8 bars, customizable multi-bar for reinforced heavy fishing nets
5. Pattern Control: Standard electronic shogging digital pattern system, freely switch mesh shapes (diamond, square, hexagonal cage net)

Full Machine Dimensions & Power Parameters

1. 152" model: 5500×2500×2500mm, weight 6000kg, main motor 5.5KW, inching motor 0.75KW, speed range 450–600rpm
2. 182" model: 6300×2500×2500mm, weight 8000kg, main motor 7.5KW, inching motor 0.75KW, speed range 450–600rpm
3. 260" wide-width model: 8200×3600×2900mm, weight 12000kg, main motor 9KW, inching motor 1.5KW, speed range 450–600rpm

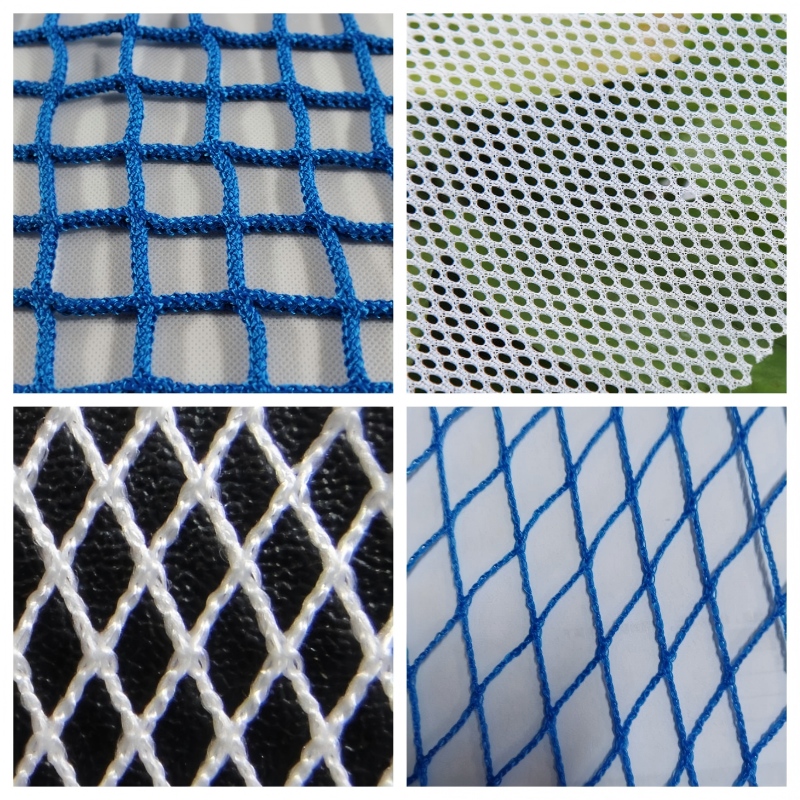

4. Supported Products: Knotless fishing net, deep sea trawl net, aquaculture cage net, trash barrier net, safety fence net, sports mesh, customized special mesh fabrics

5 Unique Competitive Advantages of LongLongSheng HSGE2320-8 Series

1.Optimized Oil Immersed Eccentric Linkage Drive System
Most mid-range Chinese brands use dry friction linkage structures, which generate high heat, wear quickly, and cause frequent yarn breakage after 6 months of continuous operation. LongLongSheng adopts full oil-bath eccentric drive design, reducing mechanical friction loss by 40%, extending core component service life to 8+ years, and stabilizing yarn breakage rate below 1.2%—close to top-tier German Karl Mayer performance at a fraction of the cost.
2.Fully Configurable Electronic Let-off, Electronic Take-up & Optional Electronic Shogging
Many competing Chinese manufacturers only equip basic mechanical let-off systems on standard models, requiring extra paid upgrades for digital control. All HSGE2320-8 machines come standard with electronic automatic yarn let-off and fabric take-up, maintaining consistent mesh tension during high-speed weaving to avoid uneven mesh size defects common in low-cost machines. Electronic shogging pattern control is available as a low-cost add-on for custom mesh production.
3.Three Width Models for Flexible Factory Scaling & Custom Machine Support
From startup small workshops choosing the compact 152" model to large-scale aquaculture net factories investing in the 260" ultra-wide version, LongLongSheng provides one-stop size matching. We also support fully customized special-spec machines for customers producing ultra-thick trawl nets or micro small fishing tackle nets, a service rarely offered by mainstream Chinese machine brands with rigid fixed models.
4.Balanced High Speed & Low Energy Consumption
The HSGE series maintains a stable 450–600 rpm full-speed running range matching top European brands, while our self-developed variable frequency main motor cuts power consumption by 15–20% compared to same-width competitors. For factories running 24-hour production, this translates to thousands of dollars in annual electricity cost savings.
5.Global Fast After-Sales & Low-Cost Spare Parts Supply
Unlike European brands with long spare parts lead times, LongLongSheng maintains global spare parts warehouses for Southeast Asia, Africa, and Latin America. Standard wearing parts can be shipped within 3–7 working days, with spare parts pricing only 1/5 of imported German/Italian machine components. We also provide remote online technical debugging via touch screen real-time monitoring, plus overseas engineer on-site installation and training for bulk orders.

Minor Limitations of LongLongSheng HSGE2320 Series (Objective Neutral Evaluation)

The maximum customized width tops out at 260", lacking the 300-inch ultra-wide custom option offered by premium German Karl Mayer machines. For factories exclusively producing super-large offshore offshore cage nets over 280-inch width, top-tier imported brands remain the first choice. This minor gap is acceptable for 90% of global fishing net manufacturers targeting standard 152–260" production.

3.2.4 Rank 10: Jiangsu Lida – LD-RS Wide Aquaculture Net Machine

Core Advantages: Low entry price for 182" models, simple mechanical operation suitable for workers with limited technical training, basic electronic take-up as standard.
Drawbacks: Dry friction drive structure causes high wear; yarn breakage rate reaches 2.5% under long-term high-speed operation; limited electronic pattern customization functions.
Best For: Small rural startup net factories with tight upfront budgets, producing single-standard aquaculture nets without custom mesh orders.

3.2.5 Rank 11: Fujian Ruida – RD-HS High Speed Fishing Net Raschel Machine

Core Advantages: Reinforced anti-rust frame design for coastal high-humidity factory environments, dedicated corrosion-resistant yarn guide parts for saltwater fishing net raw materials.
Drawbacks: Overall machine weight lighter than LongLongSheng same-width models, slight vibration during long-term 600rpm full-speed operation; higher power consumption per meter of finished net.
Best For: Coastal net factories located in high-salt humidity coastal regions of Southeast Asia and China’s Fujian province.

3.2.6 Rank 12: Shandong Jinfeng – JF8 Series Multi-Purpose Net Making Machine

Core Advantages: Multi-functional design supporting both fishing nets and construction safety mesh, cheap spare parts local supply in Northern China.
Drawbacks: Generalized all-purpose design leads to compromised performance for dedicated high-volume fishing net production; electronic control system with slower response speed than HSGE series.
Best For: Small factories splitting production between construction safety net and low-volume fishing net orders.

3.2.7 Rank 13: Zhejiang Xinli – XL-E Economical 6-Bar Fishing Net Machine

Core Advantages: Ultra-low startup price for 6-guide bar base models, compact footprint for small narrow workshops, simple maintenance steps.
Drawbacks: Cannot support multi-layer reinforced fishing net weaving; maximum stable running speed capped at 480 rpm, lower daily output than 8-bar LongLongSheng machines.
Best For: Micro startup workshops producing lightweight small bait fishing nets.

3.2.8 Rank 14: Guangdong Hengtai – HT-W Wide Width 260" Aquaculture Net Machine

Core Advantages: Early domestic supplier of 260-inch wide-width machines, stable bulk order delivery cycle, local after-sales team in South China.
Drawbacks: Only offers 6-guide bar standard configuration; electronic shogging requires expensive separate upgrades; oil drive system prone to minor oil leakage after 1 year of continuous use.
Best For: Large aquaculture net factories with fixed single mesh mass production, no frequent custom pattern orders.

3.3 Tier 3 – Budget Regional & Low-Cost Fishing Net Warp Knitting Machine Suppliers (Rank 15 to 20)

These manufacturers target ultra-low-budget startup customers, with low upfront costs but higher long-term maintenance fees, lower running speed, and higher yarn waste loss. Suitable only for small-scale low-output workshops with limited profit margins.

3.3.1 Rank 15: Turkey TeknoMak – TM-RS Localized Fishing Net Machine

Core Advantages: Local Turkish manufacturing, fast domestic after-sales service for Middle Eastern buyers, low import tariff advantages for regional customers.
Drawbacks: Lower speed ceiling (max 420 rpm), outdated mechanical drive design, high yarn breakage rate, limited export technical support outside the Middle East.
Best For: Small local fishing net workshops in Turkey, Egypt, and the Middle East.

3.3.2 Rank 16: Vietnam VinaTech – VT-Basic Budget Raschel Net Machine

Core Advantages: Local Vietnamese assembly to cut import costs for Southeast Asian startups, ultra-small compact 120-inch narrow width models.
Drawbacks: Core drive components imported from low-grade generic suppliers, frequent breakdowns after 1–2 years heavy use; no digital electronic shogging support.
Best For: Micro local fishing tackle workshops in Vietnam, Cambodia, Thailand with minimal investment budgets.

3.3.3 Rank 17: Shandong Xingfu – XF-E Basic Mechanical Fishing Net Machine

Core Advantages: The cheapest entry-level Chinese fishing net machine on the market, fully mechanical structure with zero electronic control components for ultra-low purchase cost.
Drawbacks: Fully manual tension adjustment causes severe uneven mesh defects, maximum speed only 350 rpm, extremely high yarn waste rate, high monthly maintenance labor costs.
Best For: Hobby small-scale net production with low daily output requirements.

3.3.4 Rank 18: India NetMach – INM Standard Aquaculture Net Machine

Core Advantages: Domestic Indian manufacturing avoiding high import duties, simplified mechanical design adapted to local low-skilled workers.
Drawbacks: Low structural rigidity, serious vibration at speeds over 400 rpm; spare parts quality inconsistent, no international export after-sales network.
Best For: Small local aquaculture net factories within India’s domestic market.

3.3.5 Rank 19: Indonesia IndoTech – IT Mini Small Fishing Net Raschel Machine

Core Advantages: Mini compact size for family home workshops, low shipping cost for small container shipments to Indonesian islands.
Drawbacks: Narrow maximum working width (max 130"), low production efficiency, plastic guide bars prone to rapid wear under continuous use.
Best For: Family-run small fishing tackle workshops on Indonesian coastal islands.

3.3.6 Rank 20: Pakistan TechWeave – TW Basic Manual Net Machine

Core Advantages: Extremely low total investment, fully mechanical operation without complex digital systems.
Drawbacks: Very low running speed (280–360 rpm), high raw material loss, no support for thick deep-sea trawl net weaving, limited service life of core drive parts under heavy load.
Best For: Tiny rural family workshops producing lightweight small fishing nets for local village markets only.

4. Direct Comparison Table: Tier 1 Import, Tier 2 Mid-Range Chinese (LongLongSheng as Benchmark)
